CABLE CLEAT BASE
DSSB-CC-TB2849 (Size from 28mm to 49mm)

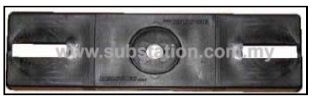

DSSB-CC-TB5070 (Size from 50mm to 70mm)

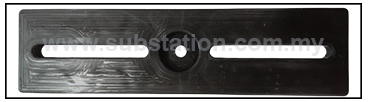

DSSB-CC-TB87102 (Size from 71mm to 112mm)
| Product Code | ||||
|---|---|---|---|---|
| Trefoil Cleat Size | Single Cleat Size | Trefoil Cleat Size | Single Cleat Size | |
DSSB-CC-TB2849 (M8 & M10) | TNC 27 TNC 30 TNC 33 TNC 36 TNC 40 TNC 44 TNC 47 TNC 50 TNC 53 | SNC 2842 SNC 2935 SNC 4356 SNC 5476 SNC 7488 | TAC 27 TAC 30 TAC 32 TAC 33 TAC 36 TAC 40 TAC 44 TAC 47 TAC 50 | SAC 2838 SAC 3953 SAC 5468 SAC 6682 |
DSSB-CC-TB5070 (M12) | TNC 55 TNC 60 TNC 65 TNC 67 TNC 70 TNC 73 TNC 77 | N/A | TAC 53 TAC 55 TAC 60 TAC 65 TAC 70 TAC 73 | N/A |
DSSB-CC-TB71112 (M12) | TNC 70 TNC 73 TNC 77 TNC 93 TNC 99 TNC 112 | SNC 87102 SNC 103116 SNC117138 | TAC 85 TAC 93 TAC 99 TAC 112 | SAC 6882 SAC 83103 SAC 100114 SAC 125160 |
Product Description
Cable Cleat Base are incorporated to raise cables from the cable tray/ ladder rung or floor wall to improve the heat dissipation rates.
The cable cleat base are also use to prevent the cable from direct contact with metal surfaces which could cause damages to the cable due to vibration.
If you encounter any problem about our non metallic trefoil, feel free to contact us at 03-9282 4007 / 03-9281 3778 or send us an email at sales@substation.com.my.
Note:
Product Certificate is available upon request. Please contact our Technical Manager directly!
