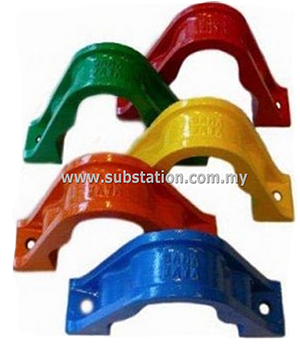

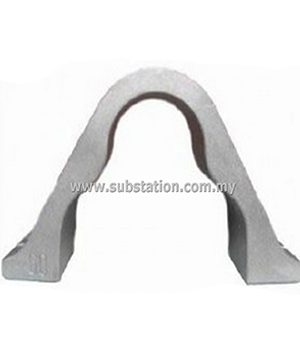

TREFOIL CABLE CLEAT

ALUMINIUM (NON FERROUS TYPE)

NO.Reference NoCable Diameter
(mm)
1DSSB-CC-TAC24 *
22-24
2DSSB-CC-TAC27
25-27
3DSSB-CC-TAC30 *
28-30
4DSSB-CC-TAC32 *
31-32
5DSSB-CC-TAC34
33-34
6DSSB-CC-TAC36
35-36
7DSSB-CC-TAC40
37-40
8DSSB-CC-TAC44
41-44
9DSSB-CC-TAC47
45-47
10DSSB-CC-TAC50
48-50
11DSSB-CC-TAC53
51-53
12DSSB-CC-TAC55
54-55
13DSSB-CC-TAC60
56-60
14DSSB-CC-TAC63 *
61-63
15DSSB-CC-TAC65
64-65
16DSSB-CC-TAC66 *
64-66
17DSSB-CC-TAC70
67-70
18DSSB-CC-TAC73
71-73
19DSSB-CC-TAC77 *
74-77
20DSSB-CC-TAC81 *
78-81
21DSSB-CC-TAC85 *
82-85
22DSSB-CC-TAC90 *
86-90
23DSSB-CC-TAC93
91-93
24DSSB-CC-TAC95
93-95
25DSSB-CC-TAC96 *
94-96
26DSSB-CC-TAC99
97-99
27DSSB-CC-TAC102 *
100-102
28DSSB-CC-TAC105 *
103-105
29DSSB-CC-TAC109 *
106-109
30DSSB-CC-TAC112
110-112
31DSSB-CC-TAC118
113-118

* non stock item, minimum quantities apply.

Product Description

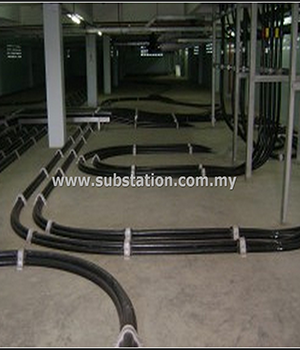

The Trefoil Aluminium Cable Cleats are made from high quality aluminium and are used to secure and retain three phase low voltage(LV) & high voltage(HV) cables in the trefoil formation which will reduce the induction of eddy currents while still maintaining the current carrying capacity of the electrical circuit.

The trefoil formation is usually used when protection against high short circuit faults in a single core power cable is required. Our cable cleats has been thoroughly tested in accordance with IEC61914.

Product Benefits

  • Can be used in various types of cable routes
  • Operating temperature if from -40°C to 100°C
  • For single core cables laid in trefoil formation
  • Can be used indoors and outdoors
  • Very resistant against chemicals
  • Easy to install
  • No sharp edges
  • Minimum corrosion

If you encounter any problem, feel free to contact us at 603-9282 4007 / 603-9281 3778 or send an email to  sales@substation.com.my.
Note:

Product Certificate is available upon request. Please contact our Technical Manager directly!

Thank you.

Have a Productive Day !!!

See Non-Metallic Trefoil Cable Cleat

Click on the image for a larger view
