TREFOIL CABLE CLEAT (FOR INDOOR / OUTDOOR USE)

NON-METALLIC

NO. Reference No Cable Diameter
(mm)

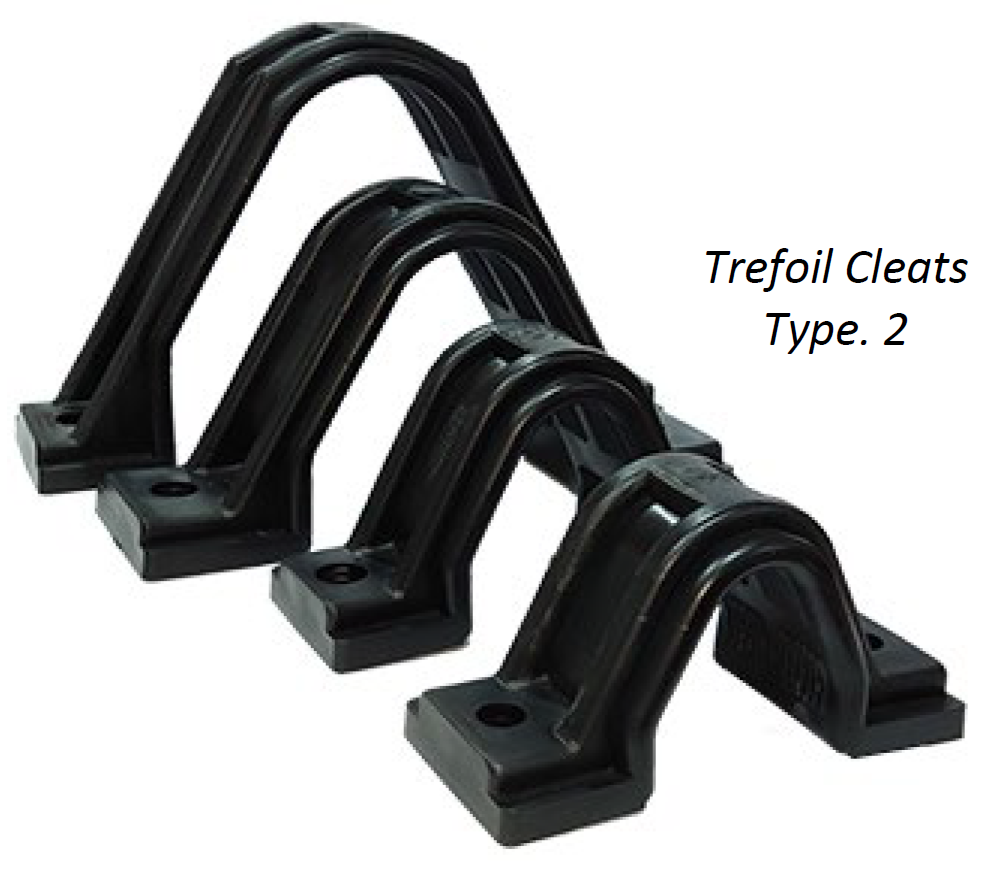

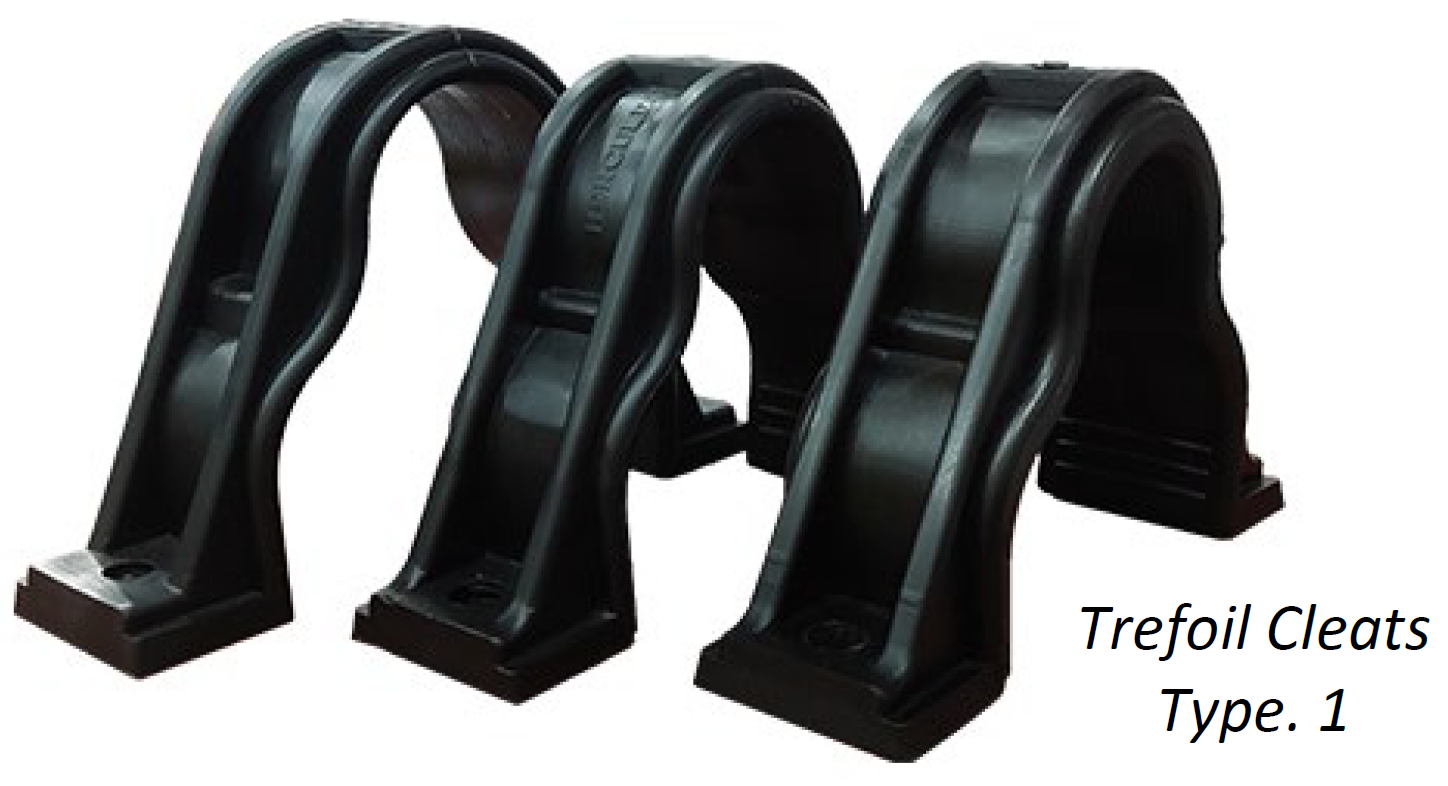

Type
1DSSB-CC-TNC24 *
22-24
1
2DSSB-CC-TNC27
25-27
2
3DSSB-CC-TNC30 *
28-30
1
4DSSB-CC-TNC33
31-33
2
5DSSB-CC-TNC36
34-36
1
6DSSB-CC-TNC40
37-40
2
7DSSB-CC-TNC44
41-44
1
8DSSB-CC-TNC47
45-47
1
9DSSB-CC-TNC50
48-50
2
10DSSB-CC-TNC53
51-53
1
11DSSB-CC-TNC55
54-55
1
12DSSB-CC-TNC57
56-57
1
13DSSB-CC-TNC60
56-60
2
14DSSB-CC-TNC65
64-65
1
15DSSB-CC-TNC67
66-67
1
16DSSB-CC-TNC70
68-70
1
17DSSB-CC-TNC73
71-73
2
18DSSB-CC-TNC77
74-77
1
19DSSB-CC-TNC81 *
78-81
1
20DSSB-CC-TNC85 *
82-85
1
21DSSB-CC-TNC93
91-93
1
22DSSB-CC-TNC96 *
94-96
1
23DSSB-CC-TNC99
97-99
2
24DSSB-CC-TNC102 *
100-102
1
25DSSB-CC-TNC105 *
103-105
1
26DSSB-CC-TNC109 *
106-109
1
27DSSB-CC-TNC112
110-112
2

* Non Stock Item, Minimum Quantities Applies.

Other size please send/ call for enquiry

Product Description

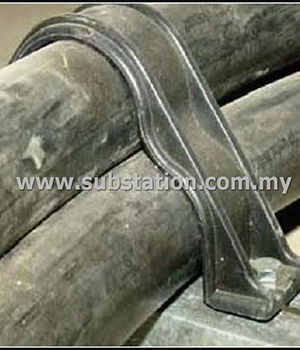

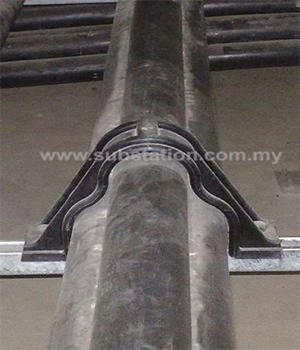

The Trefoil Non Metallic Cable Cleats are made from high Quality engineering material. It is use to secure and retain three phases low voltage (LV) , medium voltage (MV) & high voltage (HV) cables in trefoil formation which will reduce the induction of eddy currents while still maintaining the current carrying capacity of the electrical circuit.

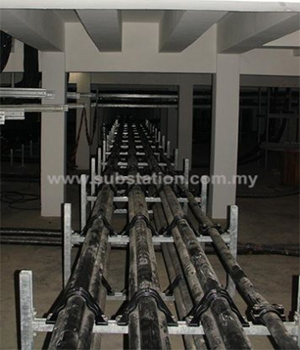

These trefoil formation is usually use when spaces are limited wether laid on a cable tray/ ladder or on the ground. Our cable cleats has been thoroughly tested in accordance with international Standard IEC 61914.

RoHS stands for Restriction of Hazardous Substances. RoHS, also known as Directive 2002/95/EC, restricts the use of specific hazardous materials found in electrical and electronic products (known as EEE).

Product Benefits

  • Can be used in various types of cable routes
  • For single core cables laid in trefoil formation
  • No magnetism
  • No conduction
  • Extremely resistant against all kinds of chemicals
  • Easy to be installed
  • No sharp corners
  • Does not oxidize
  • Can be used indoors and outdoors
  • Resistant to very heavy impact
  • RoHS compliant
  • Made of halogen free products

If you encounter any problem, feel free to contact us at 03-9282 4007 / 03-9281 3778 or send an email to sales@substation.com.my.

Note:

Product Certificate is available upon request. Please contact our Technical Manager directly!

Thank you.
